PZ41H排渣闸阀
PZ41H排渣闸阀
排渣闸阀结构特点

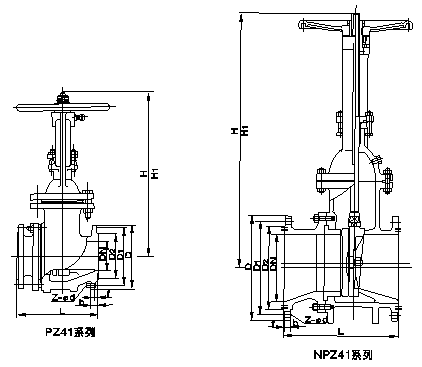

排渣闸阀主要尺寸
| 型号 Type |
公称通径 DN/mm Nominal diameter |
主要尺寸/mm Main dimensions | ||||||
| L | D | D1 | D2 | b | Z-ød | H | ||
| PZ41H-10C PL41H-10C PZ41H-16C PL41H-16C NPZ41H-10C NPZ41H-16C 电动排渣阀 尺寸同上， 高度重量加电动头。 Dimensions of motor-driven valve are the same as the above with extra height |
50 | 250 | 165 | 125 | 102 | 20 | 4-ø18 | 335 |
| 80 | 280 | 200 | 150 | 133 | 22 | 8-ø18 | 510 | |
| 100 | 300 | 220 | 180 | 150 | 24 | 8-ø18 | 685 | |
| 150 | 350 | 285 | 240 | 212 | 28 | 8-ø22 | 790 | |
| 200 | 400 | 340 | 295 | 268 | 30 | 12-ø22 | 885 | |
| 250 | 450 | 405 | 355 | 320 | 32 | 12-ø26 | 1015 | |
| 300 | 500 | 460 | 41O | 370 | 34 | 12-ø26 | 1190 | |
| 350 | 550 | 520 | 470 | 430 | 38 | 16-ø26 | 1350 | |
| 400 | 600 | 580 | 525 | 482 | 40 | 16-ø30 | 1460 | |
| 500 | 700 | 715 | 650 | 585 | 46 | 20-ø33 | 1820 | |
| PZ41H-25 PZ941H-25 NPZ41H-25 NPZ941H-25 电动尺寸同上，高度、 重量外加电动装置。 Dimensions are the same as the above With extra height and Weight of the motor |
50 | 250 | 165 | 125 | 102 | 20 | 4-ø18 | 335 |
| 80 | 280 | 200 | 150 | 133 | 22 | 8-ø18 | 510 | |
| 100 | 300 | 235 | 190 | 158 | 24 | 8-ø22 | 685 | |
| 150 | 350 | 300 | 250 | 212 | 30 | 8-ø26 | 190 | |
| 200 | 400 | 360 | 31O | 278 | 34 | 12-ø26 | 885 | |
| 250 | 450 | 425 | 370 | 335 | 36 | 12-ø30 | 1015 | |
| 300 | 500 | 485 | 430 | 390 | 40 | 16-ø30 | 1190 | |
| 350 | 550 | 555 | 490 | 450 | 44 | 16-ø33 | 1350 | |
| 400 | 600 | 620 | 550 | 505 | 48 | 16-ø36 | 1460 | |
| 450 | 650 | 670 | 600 | 555 | 50 | 20-ø36 | 1620 | |
| 500 | 700 | 730 | 660 | 615 | 52 | 20-ø36 | 1820 | |
| PL41H-25 PL941H-25 电动尺寸同上， 高度、重量 外加电动装置。 Dimensions are the Same as the above With extra height and Weight of the mortor |
150 | 400 | 300 | 250 | 212 | 30 | 8-ø26 | 91O |
| 200 | 500 | 360 | 31O | 278 | 34 | 12-ø26 | 1100 | |
| 250 | 550 | 425 | 370 | 335 | 36 | 12-ø30 | 1430 | |
| 300 | 650 | 485 | 430 | 390 | 40 | 16-ø30 | 1558 | |
| 350 | 700 | 555 | 490 | 450 | 44 | 16-ø33 | 1678 | |
| 400 | 750 | 620 | 550 | 505 | 48 | 16-ø36 | 1830 | |
| 450 | 850 | 670 | 600 | 555 | 50 | 20-ø36 | 1990 | |
| 500 | 900 | 730 | 660 | 615 | 52 | 20-ø36 | 2160 | |
| PZ41H排渣闸阀工作温度 Working temp |
≤100℃ |
| PZ41H排渣闸阀阀体材料 Body Material |
碳钢WCB Carbon steel |
| PZ41H排渣闸阀适用介质 Applicable Media |
灰渣水混合物，渣水比≥1:15，最大类径≤50mm Mixture of Water and ash residue With a ratio of residue：Water≥1：15 and max．s |
